Canon imageRUNNER iRC3880, iRC4080, iRC4080i, iRC4580, iRC4580i, iRC5180, CLC4040, CLC4080i, CLC5151 Copiers Service Manual and Parts Catalog
This Canon imageRUNNER iRC3880, iRC4080, iRC4080i, iRC4580, iRC4580i, iRC5180, CLC4040, CLC4080i, CLC5151 Copiers Service Manual and Parts Catalog has been issued for qualified persons to learn installation, troubleshooting and service the product.
Some parts of the machine must be replaced on a periodical basis so as to ensure a specific level of performance.
They may be free of external changes or damage, but they can significantly affect the machine performance once they lose their function.
It is best if replacement work is scheduled to coincide with a scheduled visit to the user's.
The values indicated herein are estimates only and are subject to change depending on the site environment and how
the machine is used.
Canon imageRUNNER iR2318, iR2320, iR2420, iR2422 Series Copiers Service Manual CONTENTS
1. Introduction
2. Installation
3. Basic Operation
4. Basic Operations (As a Printer)
5. Main Controller
6. Original Exposure System
7. Laser Exposure
8. Image Formation
9. Pickup/Feeding System
10. Fixing System
11. Externals and Controls
12. MEAP
13. RDS
14. Maintenance and Inspection
15. Standards and Adjustments
16. Correcting Faulty Images
17. Self Diagnosis
18. Service Mode
19. Upgrading
20. Service Tools
Included: Parts Catalog, Portable Manual, Installation Procedure
FORMAT: High resolution document in PDF
ZIP archive: 51 618 kB
DOWNLOAD NOW!

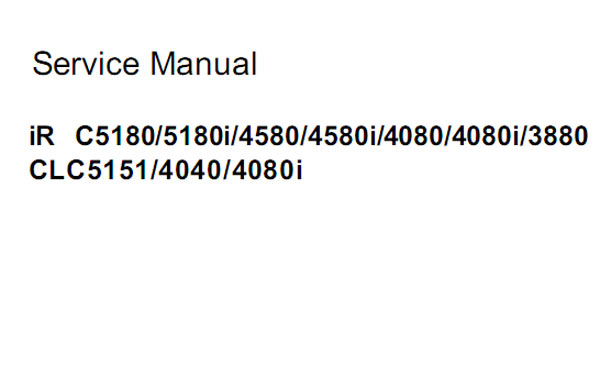

Click the image to enlarge the first page ofCanon imageRUNNER iRC3880, iRC4080, iRC4080i, iRC4580, iRC4580i, iRC5180, CLC4040, CLC4080i, CLC5151 Copiers Service Manual and Parts Catalog
|
