How to Use EPSON LFP Remote Panel / Media Adjustment

Media Adjustment Dialog Box

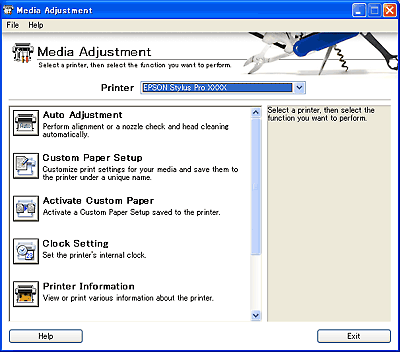

Click the Media Adjustment button in the EPSON LFP Remote Panel main dialog box to display the Media Adjustment dialog box.

Select a printer driver from the Printer list, and then use the following functions.

• Auto Adjustment:
  Perform automatic Nozzle Check and Head Cleaning, Bidirectional Alignment, or Unidirectional Alignment for coated media. See Auto Adjustment Dialog Box.

• Custom Paper Setup:
  Customize print settings to best accommodate your media and then save the settings to the printer under a unique name. See Custom Paper Setup Dialog Box.

• Activate Custom Paper:
  Activate a Custom Paper Setup saved to the printer. See Activate Custom Paper Dialog Box.

• Clock Setting:
  Set the printer's internal clock. See Clock Setting Dialog Box.

• Printer Information:
  View or print various information about the printer. See Printer Information Dialog Box.

• Bidirectional Alignment:
  Fix misaligned vertical lines caused by bidirectional printing and achieve very precise alignment of all colors. See Bidirectional Alignment Dialog Box.

• Unidirectional Alignment:
  Fix misaligned vertical lines caused by unidirectional printing and achieve very precise alignment of the standard color and each color. The standard color is different depending on the printer model. See Unidirectional Alignment Dialog Box.

Note:

When you place the mouse pointer over the icon, the description of the utility appears.

You may need to scroll to the bottom of the dialog box.

Page Setup

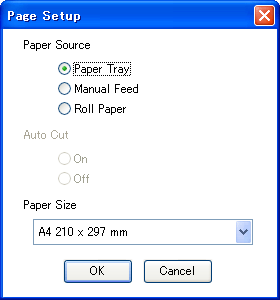

You can set the printing conditions. Choose Page Setup from the File menu. The following dialog box appears.

Note:

You can only select Page Setup when using one of the following functions: Auto Adjustment, Custom Paper Setup, Bidirectional Alignment, and Unidirectional Alignment.

You can setup the following items. For detailed information on each item, see your printer's Reference Guide.

• Paper Source (The available options are different depending on your printer model.)

• Auto Cut

• Paper Size
